Halifax, Nova Scotia Drinking Water — Coastal Lot

Project Overview

Used for Drinking Water in Halifax, Nova Scotia.

This installation in Halifax demonstrates how clean rooftop collection can be utilized as a total household potable water source. By utilizing advanced pre-filtration combined with multi-stage particulate removal, carbon treatment, and UV disinfection, rain runoff provides high-quality drinking water year-round.

Potable Water Output: Meets stringent home drinking water purity standards for all indoor fixtures.
Integrated System Design: Engineered site and elevation plans ensure optimized gravity flow and pressure delivery.
Advanced Filtration: Multi-tier filtration prevents sediment accumulation while purifying collected rainwater.
UV Disinfection: Complete microbiological safety protecting against waterborne pathogens.

System Specifications

Location Halifax, Nova Scotia
Primary Use Potable / Drinking Water
Catchment Type Rooftop Rain Collection
Filtration Multi-Stage + UV Sterilization
Distribution Automated Constant Pressure
Design Standards Cleanflo Engineered Compliance

Engineering & Plans

Site & Elevation Schematics

Detailed engineering plans for the Halifax potable rainwater system layout, site positioning, and elevation setup.

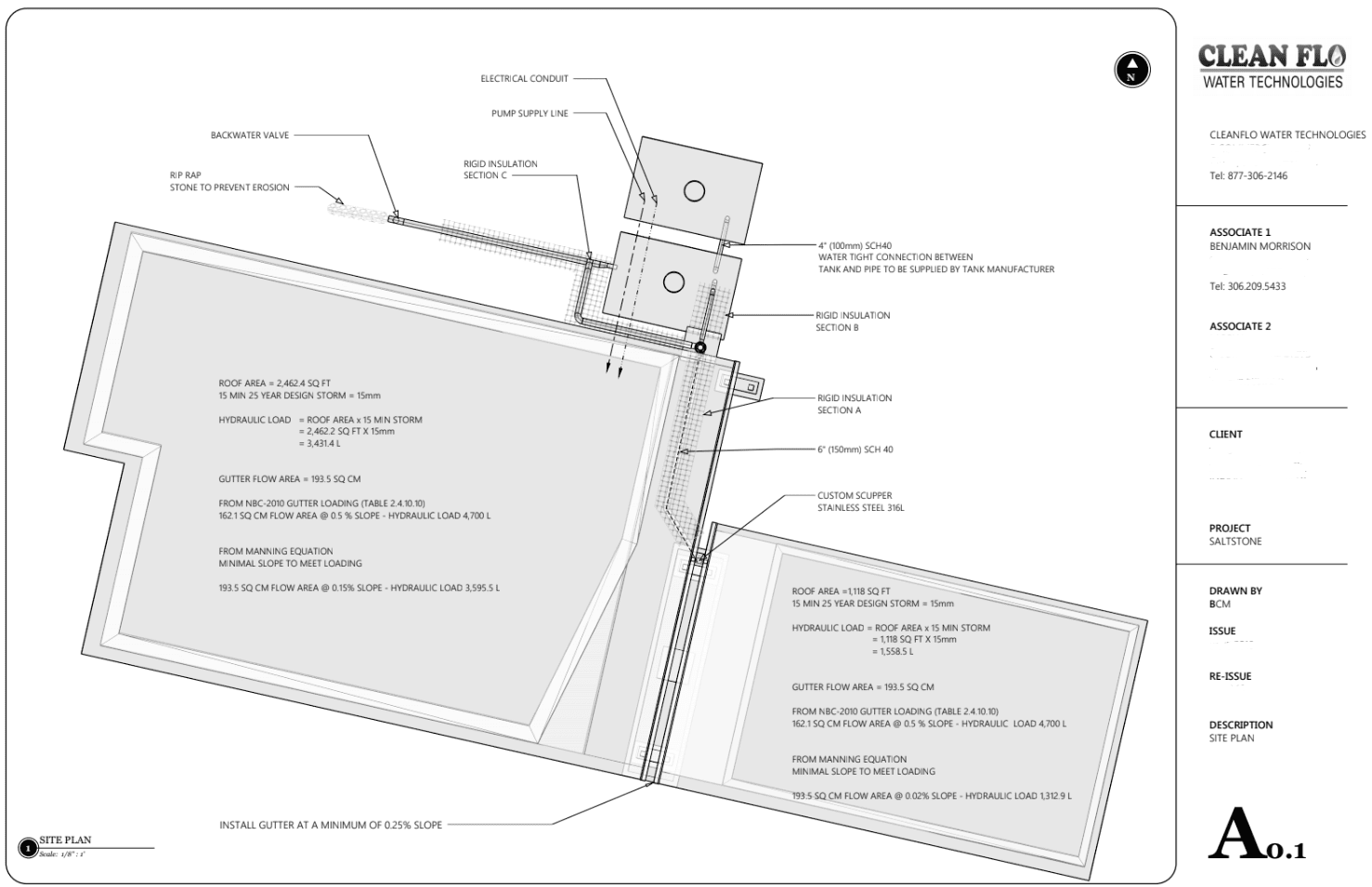

Layout Plan

Site Plan

Overhead site positioning diagram detailing rainwater collection routing, tank placement, and connection lines for the Halifax property.

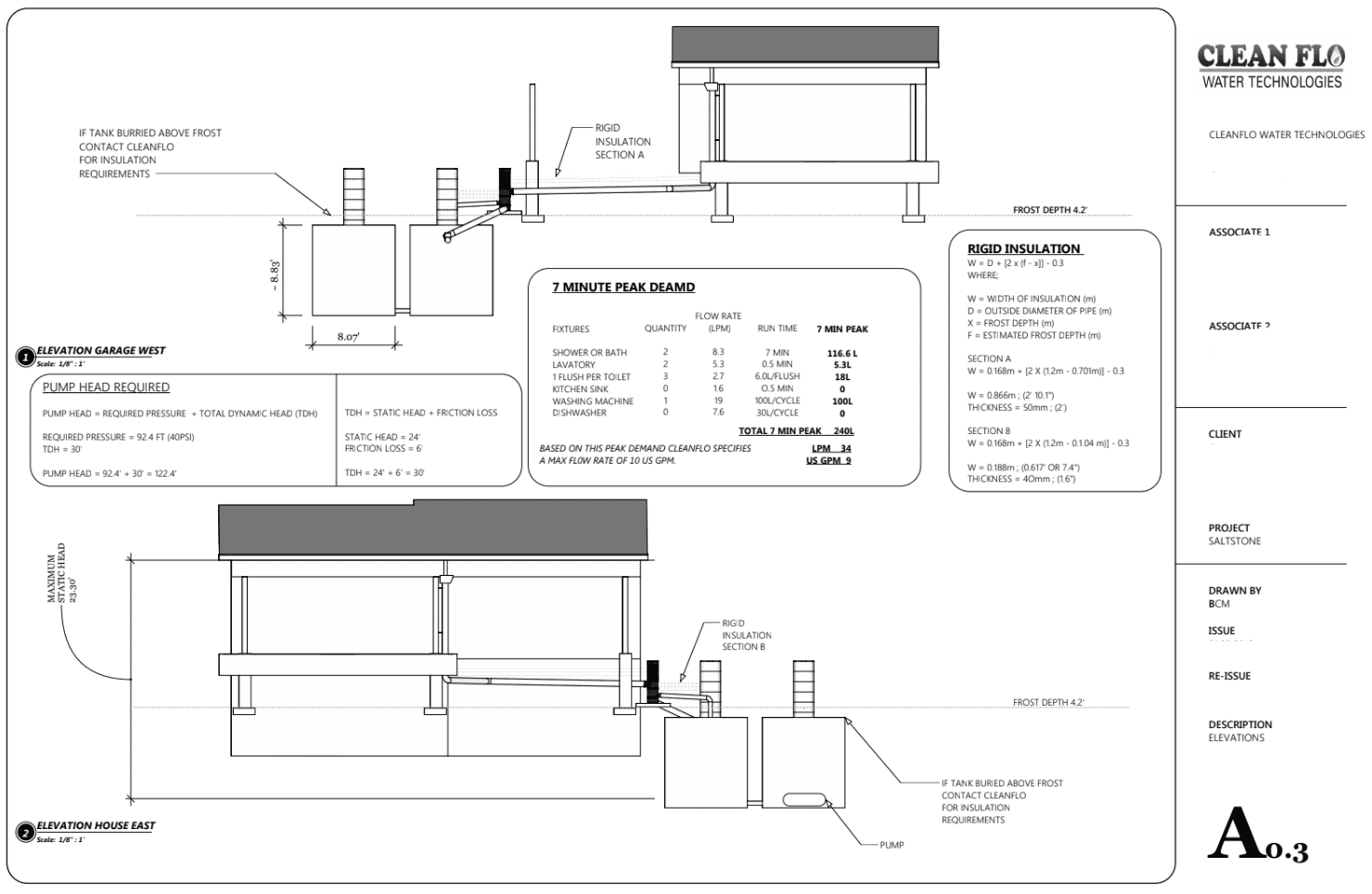

Profile Plan

Elevation Plan

Architectural elevation drawing showing piping slopes, pre-filter mounting height, tank elevation, and filtration intake locations.
