Alberta Rainwater Harvesting: Alternative to a Well

Engineered farm and residential rainwater collection system in Alberta designed as a superior, self-sustaining alternative to low-yield or poor-quality groundwater wells.

Reach out to sales Or call 1-877-306-2146

Project Overview

Sustainable Water Independence for Alberta Farms.

Many areas across rural Alberta face significant groundwater challenges, including high mineral content, alkali conditions, heavy iron, or dry wells. This Alberta farm project demonstrates how engineered rooftop rainwater harvesting provides a high-capacity, dependable, and naturally soft drinking water supply year-round.

  • Well Alternative: Replaces low-producing or poor-quality wells with a clean, rooftop-harvested water supply.
  • Large Storage Capacity: High-volume underground cisterns engineered to endure Alberta’s freeze cycles.
  • Rooftop Catchment: Captures clean runoff from large agricultural and residential roof surface areas.
  • Multi-Stage Potable Purification: Pre-filtration, fine sediment filtration, carbon polishing, and UV sterilization.

System Specifications

  • Location Alberta, Canada
  • Property Type Rural Farm / Homestead
  • Primary Purpose Potable Household & Farm Water
  • Alternative To Groundwater Well
  • Storage Type Underground Cistern System
  • Engineering Cleanflo Custom Solution

Site Photography & Engineering Plans

Installation Progress & Architectural Plans

Detailed look at the installation process, exterior layout, underground tank positioning, and engineered site plans for this Alberta property.

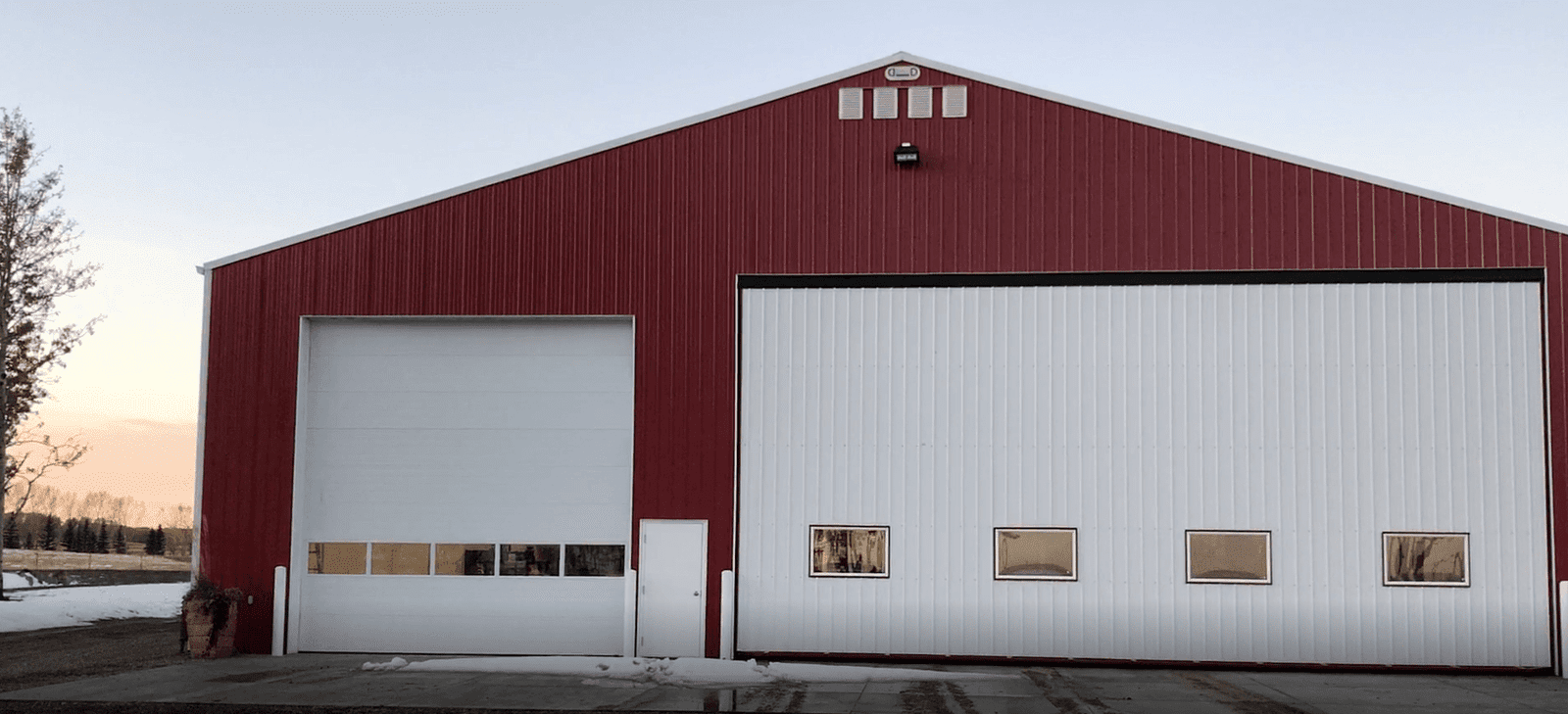

Alberta Farm Exterior View
Exterior View

Alberta Farm Property

Exterior perspective showing the homestead roof surface used as the primary catchment area for the rainwater harvesting system.

Alberta Farm Underground Tank Excavation
Site Preparation

Tank Excavation & Placement

Ground excavation and underground storage tank positioning below the frost line for deep freeze protection during winter months.

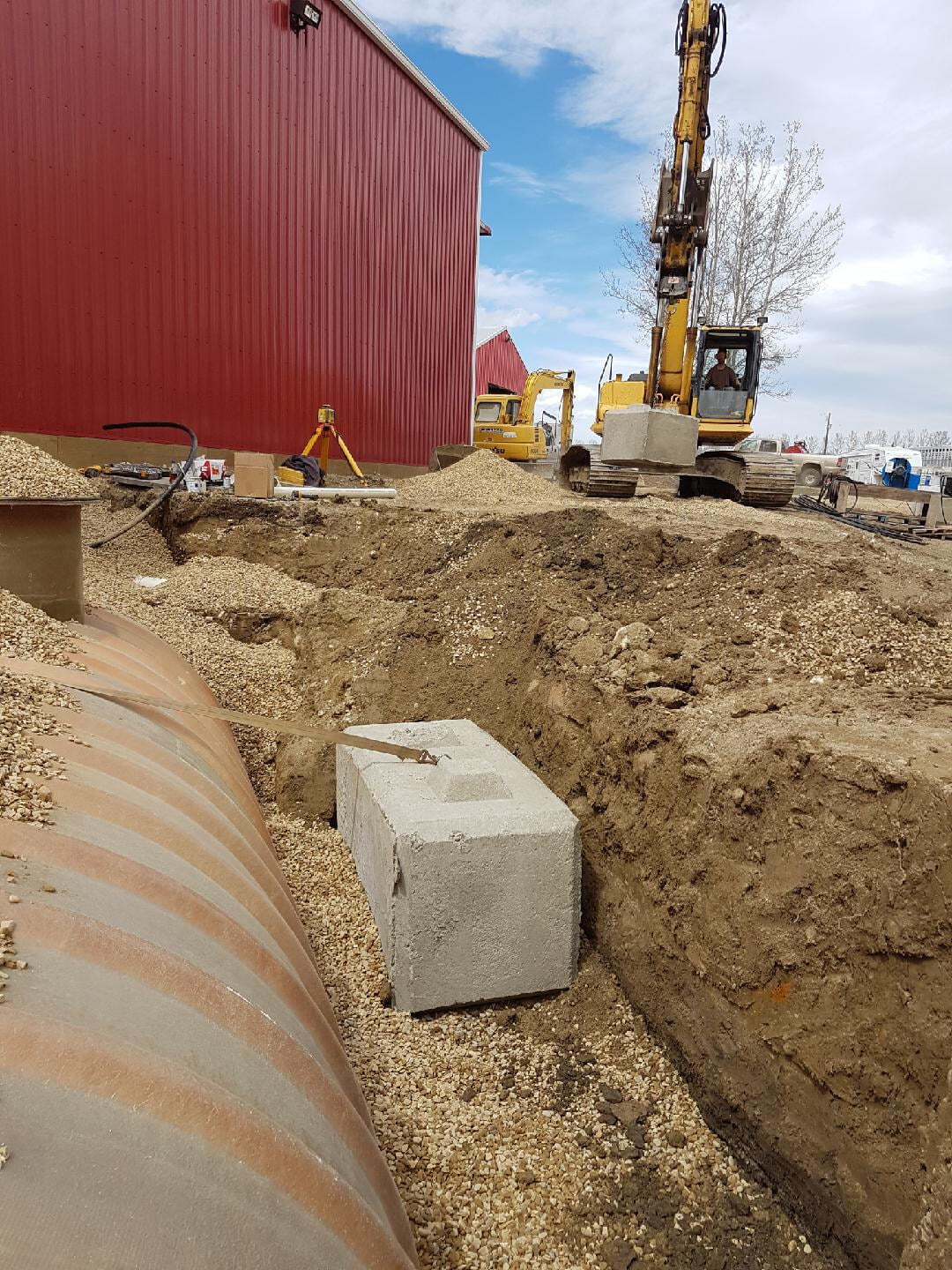

Alberta Farm Tank Backfilling Process
Installation

Cistern Backfilling

Backfilling and leveling around the high-capacity underground cistern system to ensure long-term structural stability.

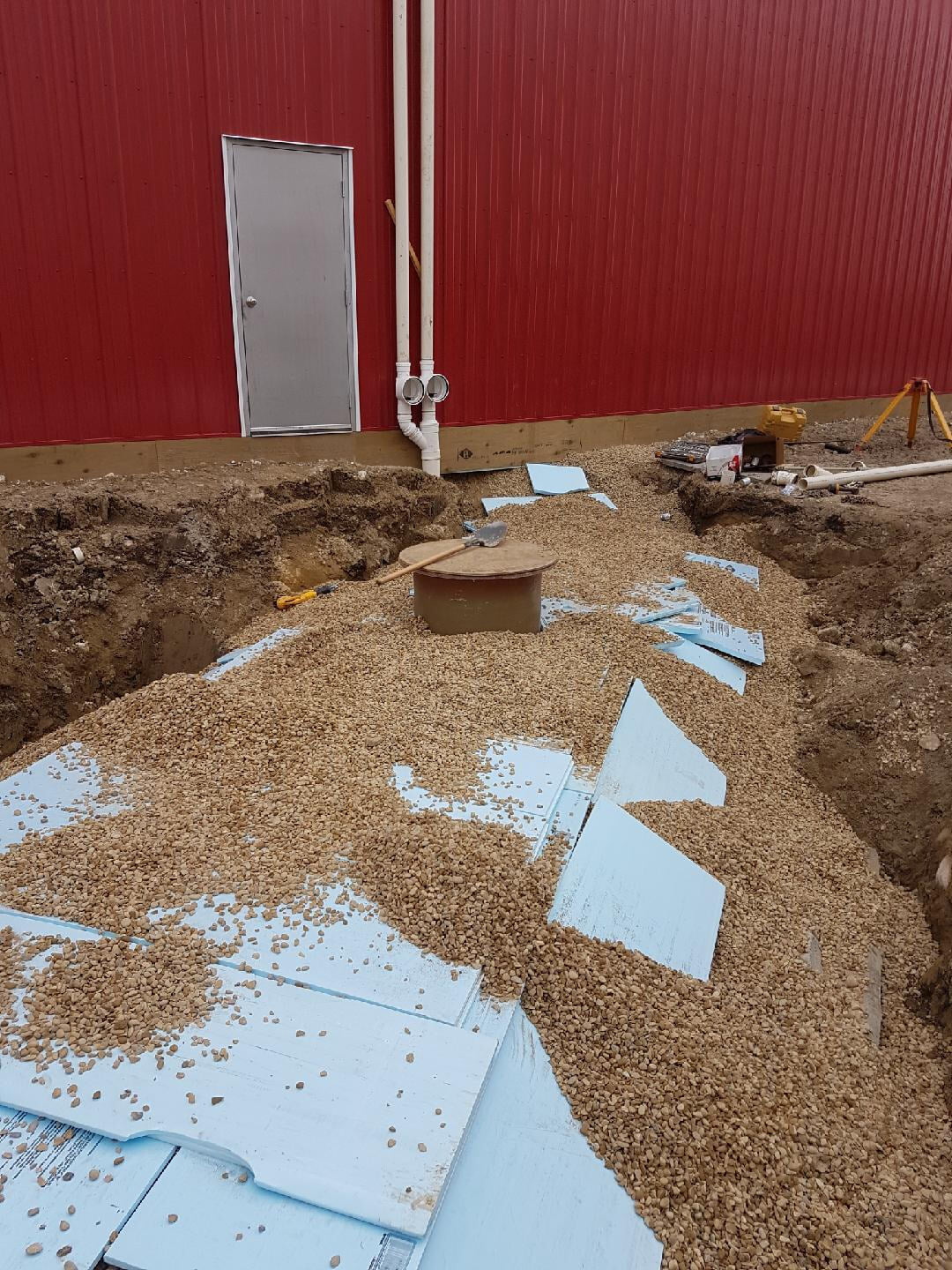

Alberta Farm Piping and Intakes
System Plumbing

Conveyance & Pre-Filtration Piping

Installation of underground conveyance pipes linking the rooftop downspouts to the pre-filtration unit and storage tank entry.

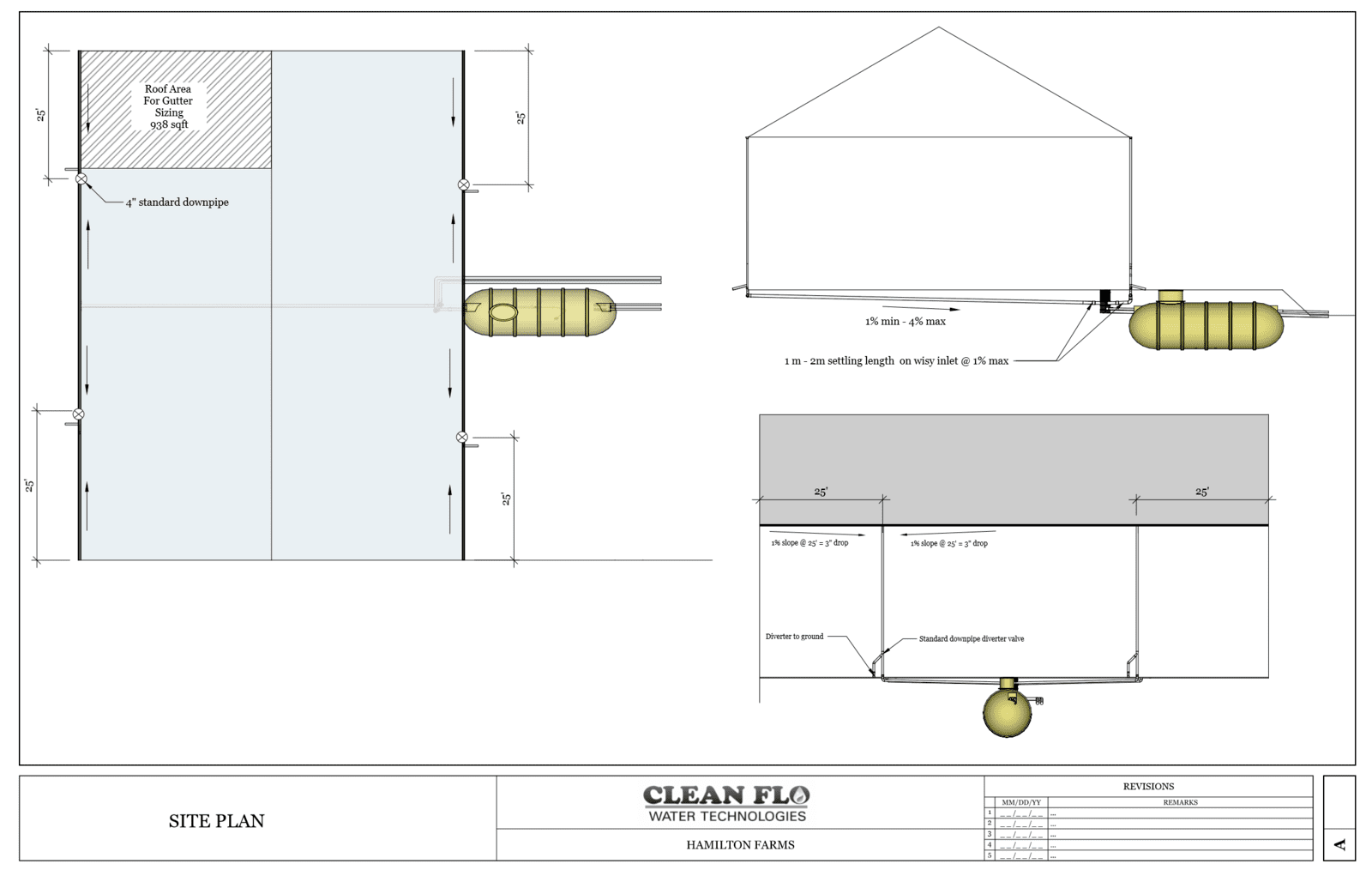

Alberta Farm Site Plan Blueprint
Site Layout

Master Site Plan

Engineered site plan illustrating roof collection areas, underground piping runs, tank location, and utility connections.

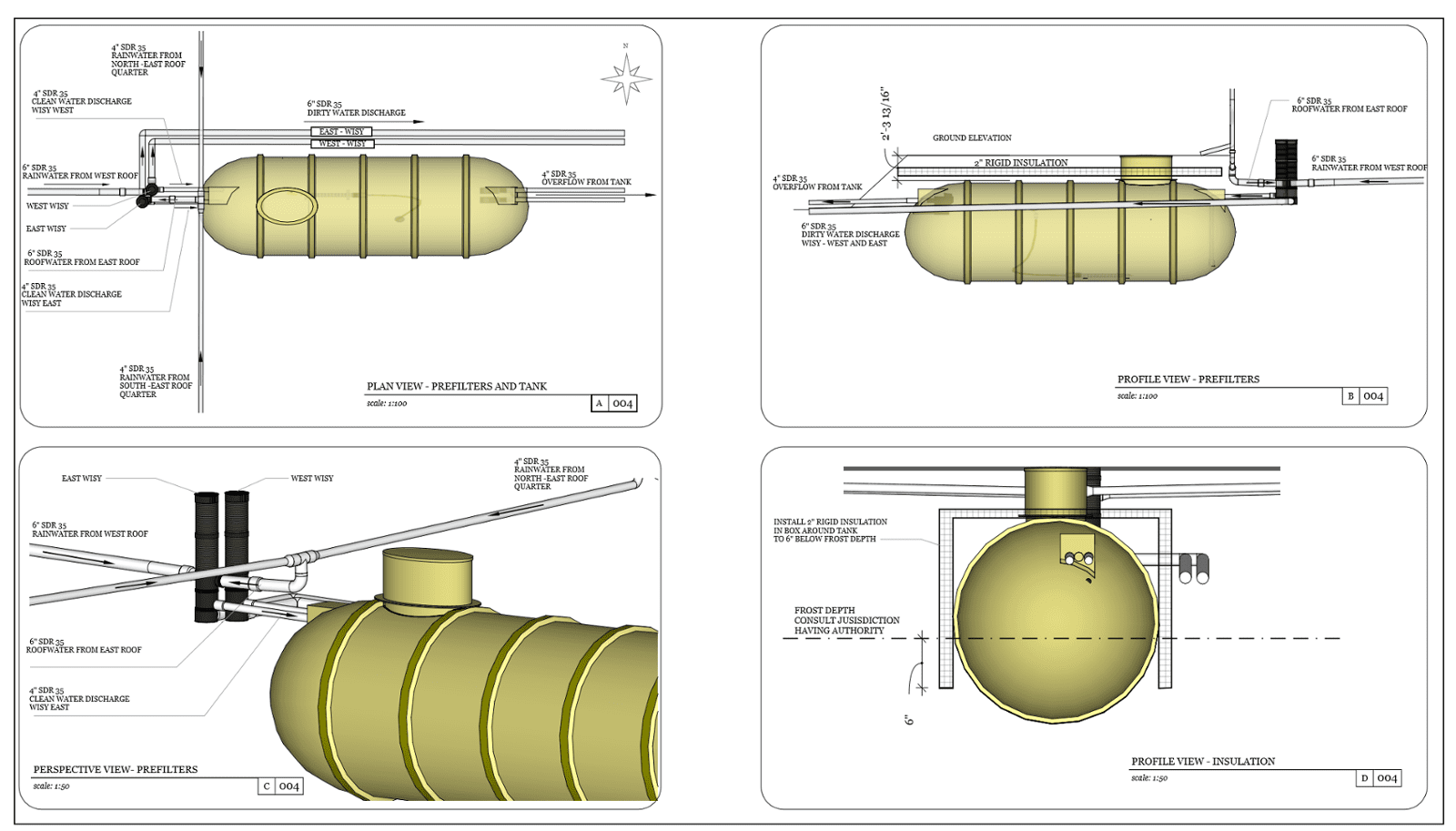

Alberta Rainwater Underground Tank Plan
Technical Detail

Storage Tank Elevation & Specs

Cross-sectional engineering detail showing calming inlet, overflow siphon, floating intake, and underground cistern geometry.
